管道成型用玻璃纖維產品

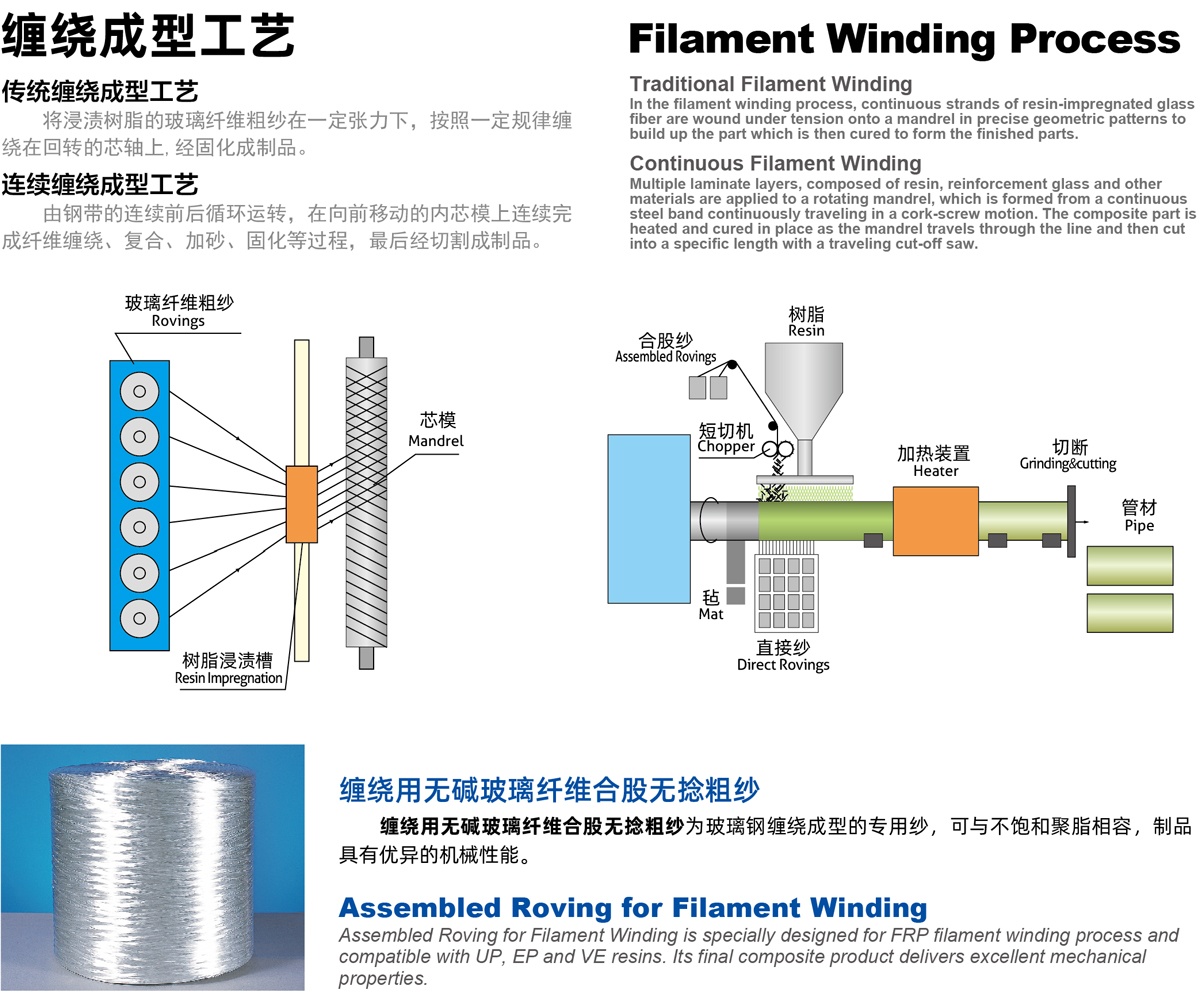

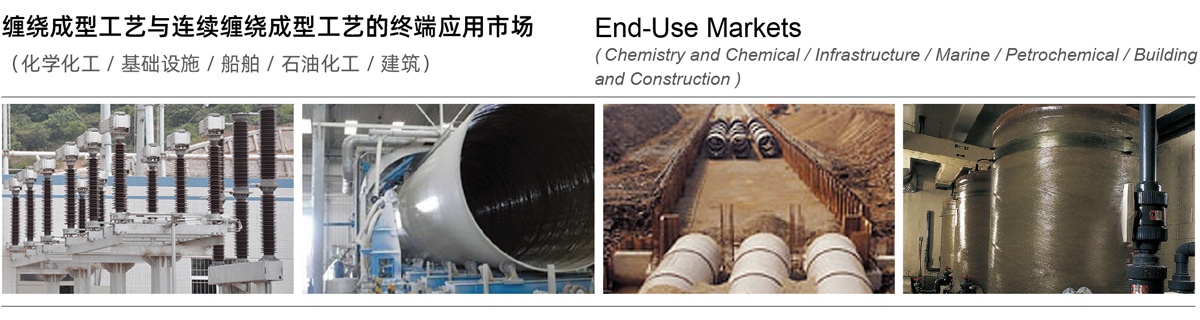

纏繞成型工藝

纏繞用無堿玻璃纖維合股無捻粗紗

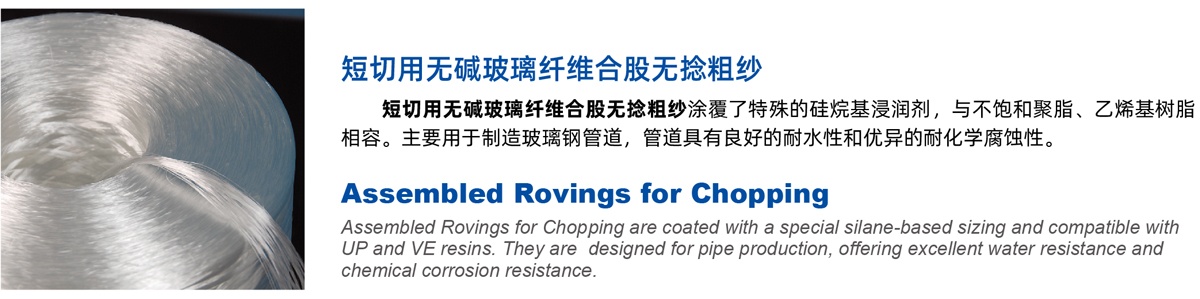

短切用無堿玻璃纖維合股無捻粗紗

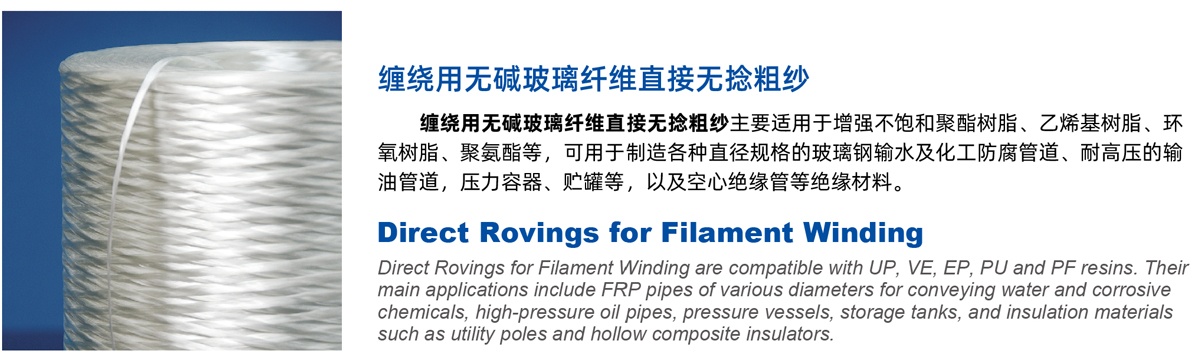

纏繞用無堿玻璃纖維直接無捻粗紗

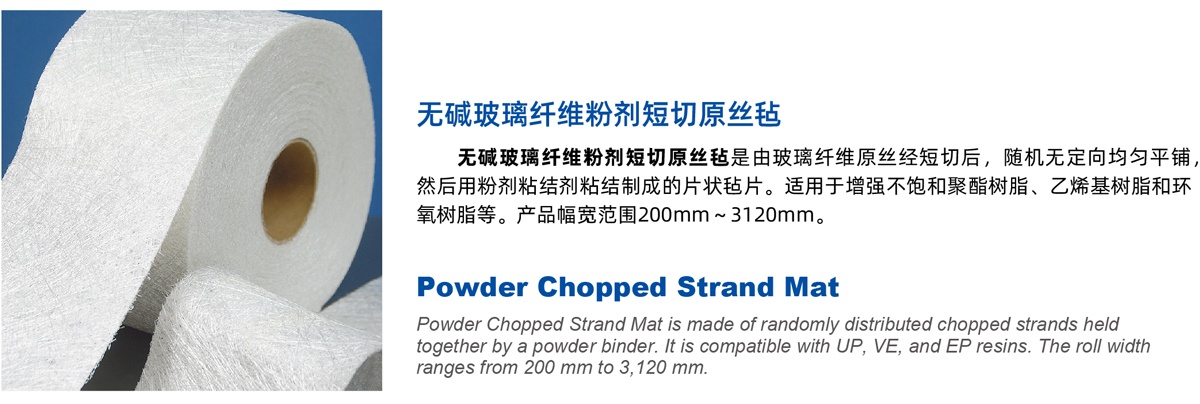

無堿玻璃纖維粉劑短切原絲氈

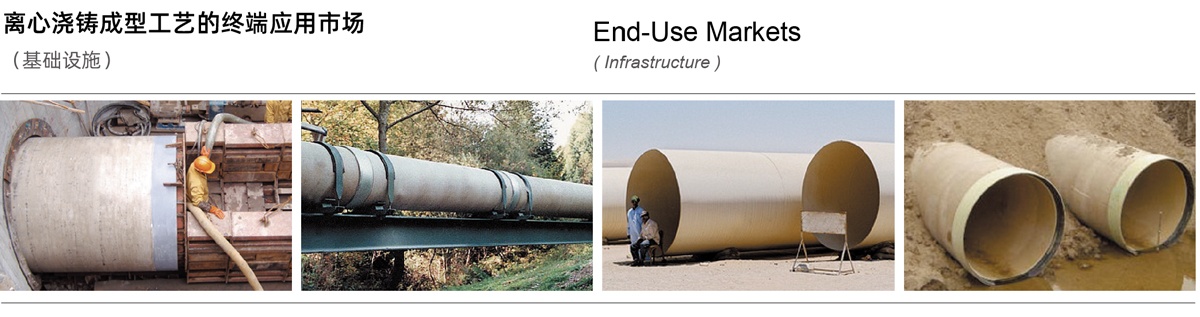

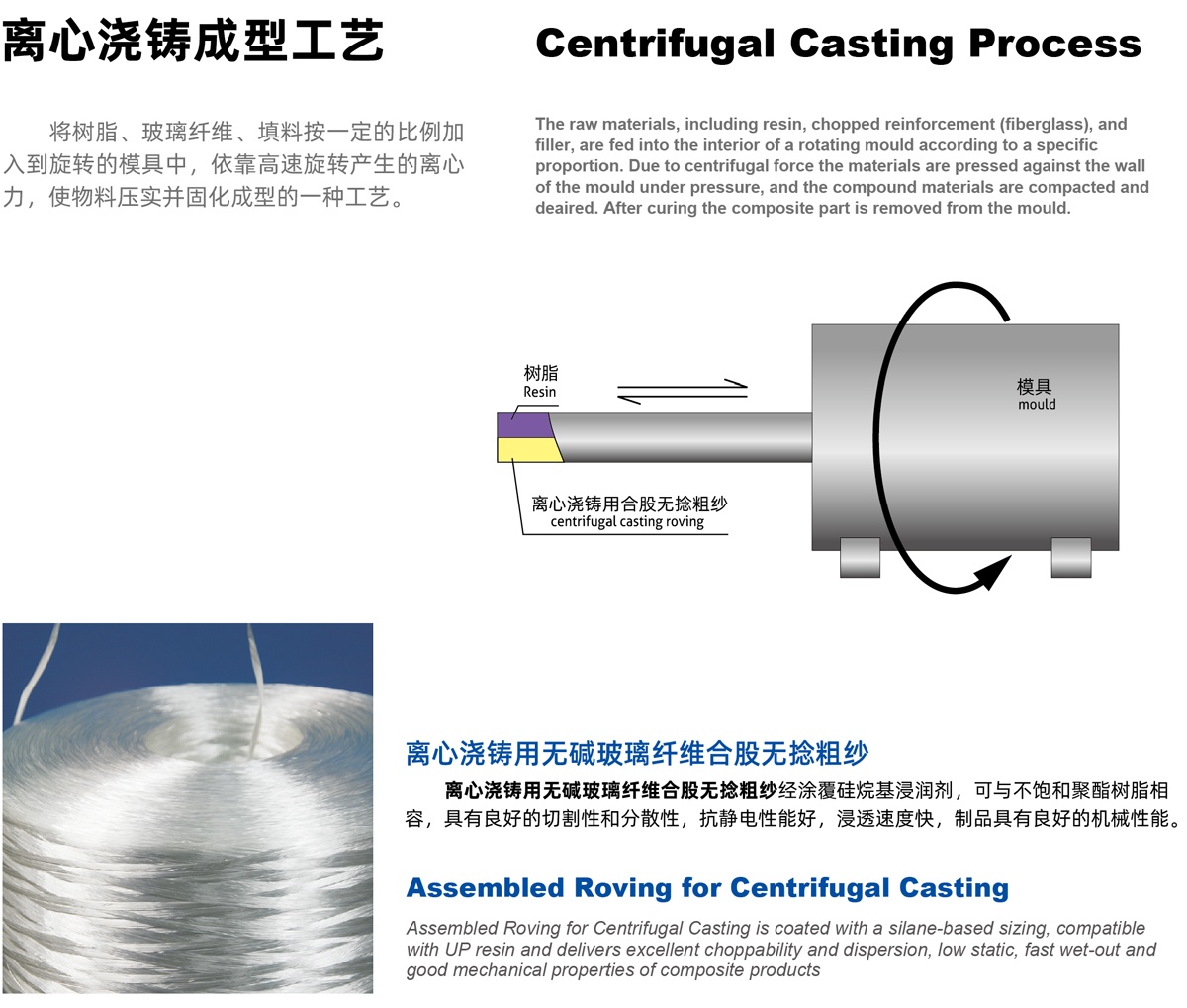

離心澆鑄成型工藝

離心澆鑄用無堿玻璃纖維合股無捻粗紗

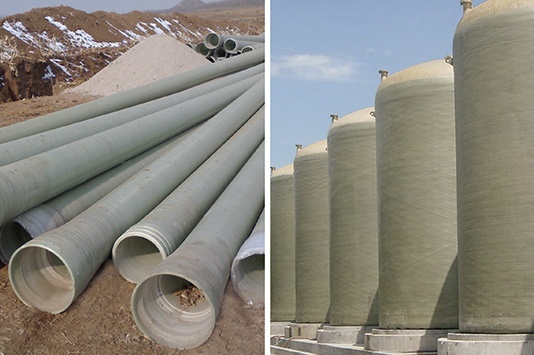

管道成型用玻璃纖維產品

產品牌號

Product Code

產品特點

Product Features

典型應用

Typical Application

手冊下載

Data Download

266

浸透快，毛羽少，強度高
Fast wet-out, low fuzz and high strength

管道，貯罐
Pipes and storage tanks

266

產品牌號 Product Code	產品特點 Product Features	典型應用 Typical Application	手冊下載 Data Download
162	浸透性適中 Moderate wet-out	連續纏繞管道 Continuous filament wound pipes	162
162k	浸透快 Fast wet-out	連續纏繞管道 Continuous filament wound pipes	162K
162E	與環氧樹脂有良好的相容性，制品機械強度高 Compatible with epoxy resin,high mechanical strength of composite products.	連續纏繞管道 Continuous filament wound pipes	162E

產品牌號 Product Code	產品特點 Product Features	典型應用 Typical Application	手冊下載 Data Download
306B	斷裂強度高、毛羽少，具有良好的耐化學腐蝕性 High fiber strength, low fuzz ,good acid and chemical resistance	熱塑性高壓管道 TP high-pressure pipes	306B
308	與環氧樹脂有很好的相容性，適合高張力纏繞工藝，管道制品爆破強度，疲勞性能優越 Compatible with epoxy resin, designed for filament winding under high tension, excellent bursting and fatigue properties of pipeline products	石油高壓的輸油管道車載CNG氣瓶 High pressure oil pipe,and CNG cylinders	308
308H	與環氧樹脂相容性好，適合高張力纏繞和胺固化體系，管道制品機械性能、耐腐蝕性能及疲勞性能優異 Compatibility with epoxy resin, suitable for high tension winding and amine curing systems, excellent mechanical properties, corrosion resistance and fatigue properties of pipeline products	石油高壓管道和壓力容器 High-pressure pipelines and pressure vessels	308H
308S	與環氧樹脂相容性好，適合酸酐固化體系，浸透速度非常快，纏繞工藝性佳，管道制品機械性能、耐腐蝕性能及疲勞性能優異 Compatibility with epoxy resin, suitable for acid anhydride curing system, very fast penetration speed, good winding processability, excellent mechanical properties, corrosion resistance and fatigue properties of pipeline products	石油高壓管道和壓力容器 High-pressure pipelines and pressure vessels	308S
310S	優異的電絕緣性能 Excellent electrical property	空心絕緣管 Hollow composite insulator	310S
386T	與樹脂相容性好，低毛羽，使用工藝性能優異，制品機械強度高 Good compatibility with resin, low fuzz, excellent performance and high mechanical strength	普通玻璃鋼管道及儲罐 Ordinary frp pipes and tanks	386T
386H	浸透快、超低毛羽，耐老化性能優異，使用工藝性能優異，制品機械強度高 Fast wet-out, ultra-low fuzz, excellent aging resistance, excellent performance and high mechanical strength	耐普通壓力的玻璃鋼輸水及化工防腐管道和儲罐 Pressure resistant FRP water pipes, chemical resistant pipes and storage tanks	386H

產品牌號

Product Code

產品特點

Product Features

手冊下載

Data Download

P02

短切氈拉伸強度高，適用于手糊成型工藝生產面積較大的制品，樹脂浸穿性好，

浸透速度快，氣泡容易排除，制品機械強度高，具備優異的耐酸腐蝕性能

High tensile strength, suitable for use in hand lay-up process to produce
large-area parts, good wet-through and fast wet-out in resins, rapid air lease,
high mechanical strength of composite products, superior acid corrosion
resistance

P02

產品牌號

Product Code

產品特點

Product Features

手冊下載

Data Download

622

適合歐洲離心澆注管道生產需求
浸透極快，吸樹脂量非常低,制品機械強度高，
Fast wet-out, extremely low resin absorbabiliy, high strength of composite
products, designed for the European market

622
